  • Plastic Mixer Horizontal Machine
  • Plastic Mixer Horizontal Machine
Plastic Mixer Horizontal Machine

Plastic Mixer Horizontal Machine

The operating interface of the Plastic Mixer Machine is intuitive and easy to use. Users only need to set parameters through the control panel to start the mixing process without complicated manual operation. During the mixing process, the equipment runs smoothly with low noise, which can effectively reduce the interference to the working environment.
  • Product Information

plastic Mixer Machine is an industrial equipment specially used for mixing plastic raw materials. It is mainly used to evenly mix different kinds of plastic granules, powders or other additives to meet the requirements of material consistency in the production process. The equipment usually consists of a large mixing chamber, a stirring device, a drive motor, a heating system and a control panel.

Plastic Mixer Horizontal Machine


Plastic Mixer Machine Advanced Features:

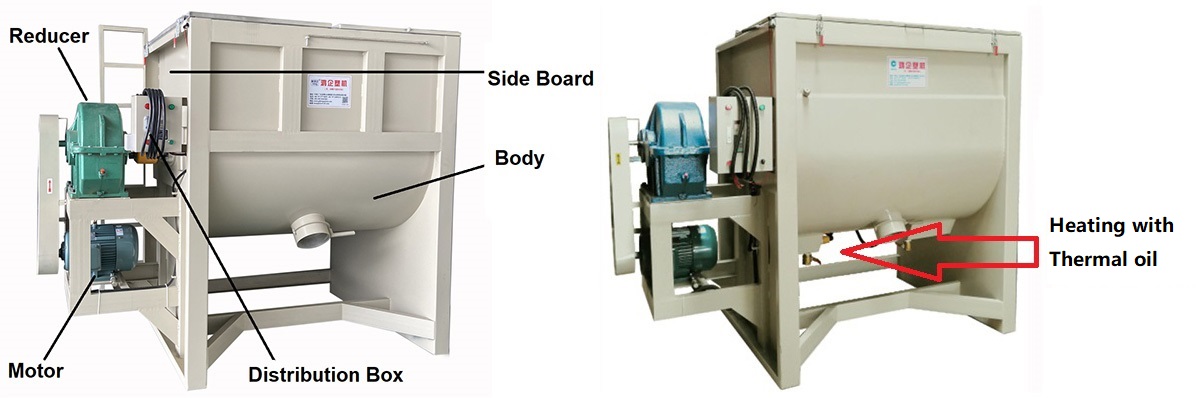

Horizontal Structure

Plastic Mixer Machine adopts horizontal structure design, and the mixing chamber is placed horizontally, which is convenient for the entry and exit and mixing of materials. The horizontal structure can effectively reduce the residue of materials during the mixing process and improve the mixing efficiency.


Precision Mixing Blades

The internal equipment is equipped with high-precision mixing blades. The blade shape and spacing are optimized, which can generate strong shear force and turbulence when rotating at high speed, ensuring that the materials are evenly distributed in the chamber.


Heating System with Thermal Oil

The equipment has a built-in heating system, which uses hot oil as the heat transfer medium to heat the materials evenly. The hot oil heating system has the characteristics of high thermal efficiency and precise temperature control, and is suitable for plastic raw materials that require high-temperature mixing.


Safety Mechanisms

The equipment is equipped with multiple safety mechanisms, including emergency stop button, overload protection device and door lock safety switch. When the equipment is abnormal or the operator touches it by mistake, the safety mechanism can immediately stop the equipment operation to ensure safe operation.


Customizable Options

The equipment can be customized according to user needs, including the capacity of the mixing chamber, the type of mixing blades, the power of the heating system, etc. Users can choose the appropriate configuration according to production needs to improve the applicability of the equipment.


Easy Maintenance

The equipment is designed with maintenance convenience in mind, and key components (such as mixing blades, motors, and heating systems) are easy to disassemble and clean. In addition, the equipment is equipped with a fault diagnosis system that can quickly locate problems and reduce maintenance time.


Stainless Steel Construction

The mixing chamber and mixing blades are usually made of stainless steel, which is corrosion-resistant and easy to clean, and can adapt to different types of plastic raw materials and additives.


Programmable Control System

The equipment is equipped with a programmable control system. Users can set parameters such as mixing time, temperature, and mixing speed through the control panel, and save multiple sets of preset programs to facilitate the mixing operation of different batches of materials.


Plastic Mixer Machine Application:

Plastic Manufacturing

In the production of plastic products, Plastic Mixer Machine is used to mix different kinds of plastic particles and additives to ensure the consistency and uniformity of raw materials, thereby improving product quality.


Chemical and Rubber Industry

In the chemical and rubber industry, the equipment is used to mix various chemical raw materials and rubber particles, especially in processes that require high-temperature melting or precise control of the mixing ratio.


Masterbatch Production

In masterbatch production, the equipment is used to evenly mix pigments and plastic raw materials to ensure the color consistency and stability of masterbatches.


Powder Coatings

In powder coating production, the equipment is used to mix resins, pigments and additives to ensure the uniformity and adhesion of the coating.


Food and Pharmaceutical Processing

In food and pharmaceutical processing, the equipment is used to mix powdered raw materials such as flour, sugar, medicinal powder, etc. to ensure the uniformity and hygiene of the raw materials.


Plastic Mixer Machine Technical Specifications:

ModelHQ-0.5THHQ-1THHQ-2THHQ-3THHQ-5TH
Power ( KW)7.51118.52230
Capacity (KG)5001000200030005000
Dimension (mm)2500*900*17002650*1300*21003800*1300*25004420*1650*25006000*2500*3000
Heating Power (KW)612242430

The best sell model are 500 KG capacity Ribbon Mixer and 1000 KG capacity Mixer with heating. For custom configurations, contact us for tailored solutions.


Watch the 2000L Ribbon Mixer in Action: See How Our Horizontal Plastic Mixing Machine Delivers Precision and Efficiency in Real Factory Operations!

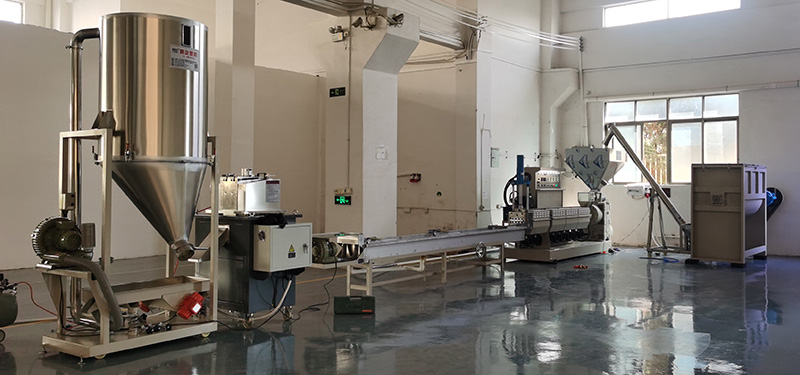

Explore the Complete Production Line: See How the Ribbon Mixer, Pelletizing Machine, and Feeding System Work Seamlessly Together in a Real Factory Setup!

1736307678326334



Equipment from R to L is:

①Ribbon Mixer→②Auger ConveyorExtruder④Water Cooling Tank with suction motor

⑤Pellets Cutting Machine⑥Vibrating screen machine with Hopper


Explore Our Workshop

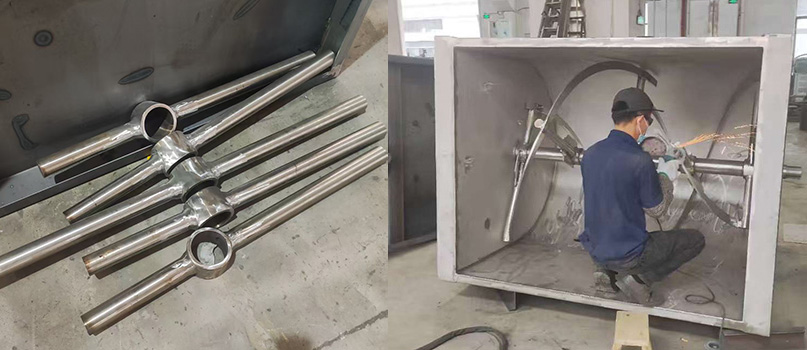

Our powder mixer for plastics and additives is manufactured in a cutting-edge facility equipped with advanced engineering and quality control processes. Featuring thick and sturdy construction, our mixer blades deliver reliable and consistent mixing results, reflecting the meticulous craftsmanship and attention to detail in every machine we create. View our production workshop to see this precision engineering in action.

1736154254756460


Why Choose Our Plastic Mixer Machine?

1. High-Efficiency Performance

The mixer has precision-engineered blades that ensure thorough and uniform blending of powders and additives.

Capable of handling large volumes, reducing batch processing time, and enhancing productivity.


2. Energy-Saving Design

Engineered for optimal energy efficiency, minimizing power consumption while maintaining superior mixing performance.

Integrated mixing and drying functionalities streamline production processes, saving time and resources.


3. Durable and Hygienic Construction

Built with high-grade stainless steel for both the mixing barrel and blades, offering durability, resistance to corrosion, and easy cleaning.

It is ideal for industries where contamination-free mixing is critical.


4. Automated Operation for Convenience

Features a user-friendly control system with programmable mixing time, speed, and temperature settings.

Automatic stop function and thermal protection ensure safety and ease of use during operations.


5. Flexible Applications

Suitable for mixing a wide range of materials, including:

Plastics: PVC, PE, PP, ABS, and more.

Additives: fillers, pigments, stabilizers, and colorants.

Powders: chemicals, rubber compounds, and other fine materials.


Why Clients Rely on Our Services

We have built a remarkable reputation over the years by ensuring that we provide robust and reliable equipment to a multitude of industries. Manufacturers in food, pharmaceuticals, chemicals, and plastic all find our industrial mixing solutions to be impressively robust.


Additives as well as plastics owe all their mixing needs to us, reach out and get your order for a quote today!


Make this the best day of your production, get in touch for more information on what it is we offer, and we will ensure that you get the best demonstration of a quote.
