Vertical Air-Driven Plastic Mixer Efficient and Compact Solution for Material Processing
- Product Information
Vertical Air-Driven plastic Mixer - Efficient and Compact Solution for Material Processing

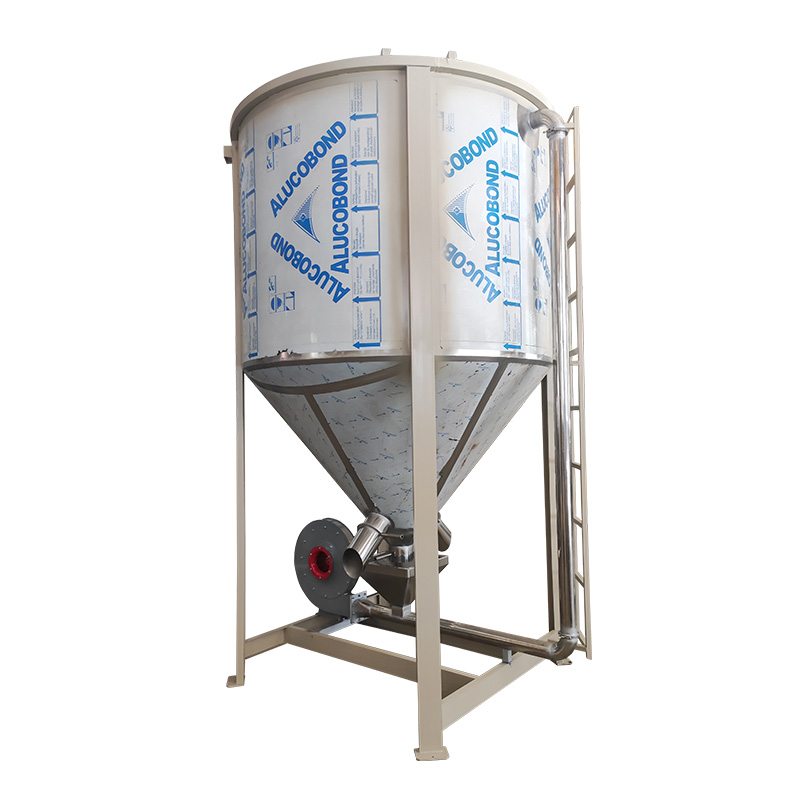

Vertical Air-Driven Plastic Mixer Overview
The Vertical Air-Driven Plastic Mixer is a state-of-the-art industrial solution designed for the efficient mixing of plastic pellets and lightweight materials. By utilizing advanced air-driven mixing technology, this machine circulates materials using airflow, lifting them from the bottom and allowing gravity to evenly distribute them. This results in a highly efficient mixing process that ensures uniformity and quality in every batch. Made from high-quality stainless steel, this mixer is ideal for industries such as plastics, chemicals, and food processing, where rapid and consistent mixing is crucial.
Vertical Air-Driven Plastic Mixer Parameters:
Model | HQ-1000 | HQ-2000 | HQ-3000 | HQ-5000 | HQ-6000 | HQ-8000 | HQ-10000 | HQ--12000 |
Main motor( KW) | 4 | 5.5 | 7.5 | 11 | 11 | 18.5 | 18.5 | 18.5 |
Heating/Fans(KW) | 18/0.75 | 18/0.75 | 18/0.75 | 21/1.5 | 21/1.5 | 30/1.5 | 30/2.2 | 30/2.2 |
Capacity (KG) | 1000 | 2000 | 3000 | 5000 | 6000 | 8000 | 10000 | 12000 |
Dimension (mm) | 1500*2800 | 1800*3300 | 2100*3650 | 2300*4300 | 2500*4300 | 2650*5200 | 2850*5700 | 3000*5700 |
Weight (KG) | 420 | 550 | 700 | 1080 | 1300 | 1600 | 2000 | 2200 |
Vertical Air-Driven Plastic Mixer Features
Space-Efficient Vertical Design:
The mixer’s vertical structure significantly reduces its footprint, making it an excellent choice for factories and workshops with limited space. Despite its compact design, it can handle up to 3000 kg of material, ensuring high productivity and efficiency.
High-Efficiency Air Mixing:
The air-driven mixing technology ensures that materials are evenly distributed, greatly enhancing mixing efficiency. This method is particularly effective for lightweight materials, allowing for quick and thorough mixing without compromising the quality of the materials.
Material Protection:
Designed to minimize friction between plastic pellets and the equipment, the Air-Driven Mixer prevents scratching and preserves the gloss and integrity of the plastic surface, making it ideal for sensitive materials.
User-Friendly Operation:
The mixer features a simple and intuitive control system, making it easy to operate even for those with minimal technical experience. Users can easily adjust mixing parameters, facilitating automated operations and reducing operator workload.
Low Maintenance Requirements:
With a straightforward design and fewer moving parts, the mixer requires minimal maintenance, reducing both downtime and operational costs. The stainless steel construction ensures durability and longevity, making it a reliable choice for continuous industrial operations.
Energy Efficiency:
Powered by a 3.8KW blower fan, the mixer uses compressed air to drive the mixing process, consuming less energy compared to traditional mechanical mixers. The light operating load further reduces energy consumption, making it an eco-friendly and cost-effective option.
Vertical Air-Driven Plastic Mixer Technical Specifications
Material: High-quality stainless steel construction with 2mm thick outer panels and a fully stainless steel interior.
Dimensions: 2100mm x 3650mm
Fan Power: 3.8KW
Mixing Capacity: Up to 3000 kg
Warranty: One-year warranty under normal use (excludes consumable parts)
Applications of Vertical Air-Driven Plastic Mixer
Plastic Industry:
Ideal for pre-mixing plastic pellets, enhancing uniformity, and ensuring consistent quality in subsequent processing.
Chemical Industry:
Suitable for mixing various chemical raw materials, ensuring product consistency and stability.
Food Industry:
Perfect for blending powdered or granular food additives, ensuring even distribution.
Why Choose Us?
Choosing the right Vertical Air-Driven Plastic Mixer can significantly improve production efficiency, reduce labor costs, and maintain high product quality. Our mixer is specifically designed to meet the demands of modern industrial environments, offering a reliable, efficient, and low-maintenance solution for your material processing needs.
Contact us today for more information or to place your order, and experience the superior performance and durability of our vertical air-driven mixers.
