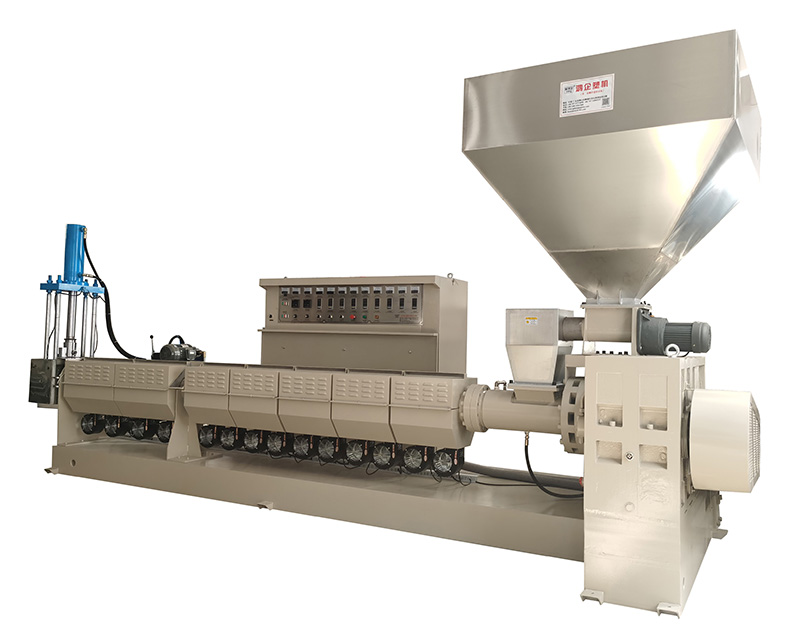

Plastic Extrusion Machine

Plastic Extrusion Machine

The operation of Plastic Extrusion Machine is relatively simple, and users can easily adjust parameters such as temperature, pressure and screw speed through the control panel. This machine can continuously produce uniform, high-quality plastic products to meet the needs of different industrial applications.
  • Product Information

Plastic Extrusion Machine is a machine used to manufacture various plastic products. It melts and molds plastic granules or powder into specific shapes by applying heat and pressure. The process involves placing the plastic material into a hopper and then pushing it forward through the rotation of the screw. During the conveying process of the screw, the plastic material is gradually melted by friction and the heat generated by the external heating element. The molten plastic is then pushed into the mold to form the desired shape. This machine can process many types of thermoplastics such as polyethylene (PE), polypropylene (PP) and polyvinyl chloride (PVC), etc.

Plastic Extrusion Machine

Plastic Extrusion Machine Infomation:

Model:HQ-150
Warranty:1 Year
Port:Nansha, China
Screw:Single Screw
Terms Of Payment:T/T
Average Lead Time:1-2 Months
Screen Changer:Hydraulic Pressure Screen Changer
International Commercial Terms (Incoterms):FOB, CFR, CIF, EXW
Factory Nature:China Manufacturers Suppliers Factory


Plastic Extrusion Machine Parameters:

Model

HQ-90

H-120

H-150

Capacity

200-300KG/HR

4000-600KG/HR

600-1000KG/HR

Motor

(Inverter Control)

55KW

110KW

185KW

Dimension



3850*1800*2100mm

5600*2300*2500mm

6500*2800*2500mm

Weight

2800KG

5100KG

6200KG

Screw

Material:SACM-1

Φ90*P90/85;

L/D:33

Material:SACM-1

Φ120*P120/120;

L/D:33

Material:SACM-1

Φ150*P150/150;

L/D:30

Temp.

5 Section control

8 Section control

9 Point Controller

Gear oil cooling filter system

1 Group

1 Group

1 Group

Barrel cooling fan

180W*8PCS

370W*12PCS

370W*16PCS

Barrel Heating

40KW

65KW

90KW

Screen Changer

(Die head)

Dual Bolts Continuous Screen Changer

Heating: 2.2KW

Screen: Φ200mm

Dual Bolts Continuous Screen Changer

Heating: 10KW

Screen: Φ260mm

Dual Bolts Continuous Screen Changer Heating: 15KW

Screen: Φ330mm

Auto Feeder

( Inverter Control )

Materials: Stainless steel,

Screw L/D: 60

Motor:750W

Materials: Stainless steel,

Screw L/D:40

Motor:1500W

Materials: Stainless steel,

Screw L/D: 40

Motor:2.2KW


Plastic Extrusion Machine Features:

  1. Screw Design: The screw of the Plastic Extrusion Machine is the core component of the extruder, and its design directly affects the conveying, melting and mixing effects of the plastic material. The parameters of the screw such as diameter, aspect ratio, compression ratio, pitch, groove depth and helix angle determine the performance and application range of the extruder. The screw is usually divided into a feeding section, a compression section and a homogenizing section to adapt to the changes of materials at different stages. At the same time, the material of the screw has the characteristics of high temperature resistance, wear resistance, corrosion resistance and high strength to adapt to high temperature and high pressure working conditions and extend the service life.


  2. Material Compatibility: The Plastic Extrusion Machine can handle a variety of thermoplastics, such as polycarbonate (PC), polyamide (PA), polypropylene (PP), polyethylene (PE) and acrylonitrile-butadiene-styrene copolymer (ABS). This wide range of material compatibility enables the machine to adapt to different production needs and handle a variety of complex plastic formulas.


  3. Extrusion Process Control: The extruder ensures that the plastic material remains stable during the extrusion process by precisely controlling the temperature, pressure and screw speed. This precise control helps to reduce material waste and product defects, and improve production efficiency and product quality. The machine is equipped with an advanced temperature control system that can accurately adjust the temperature according to different plastic materials and process requirements to ensure the consistency of processing conditions.


  4. Transparent Plastic Processing Capability: When processing transparent plastics, the Plastic Extrusion Machine is able to maintain the clarity and optical properties of the material. This ability is essential for producing high-quality transparent plastic products, such as food packaging and optical devices.


  5. Single Screw vs. Twin Screw Design: Single screw extruders are simple in design and low in cost, suitable for standard plastic extrusion applications. Twin screw extruders provide better mixing and conveying capabilities, suitable for materials with complex formulas and high mixing requirements. The twin screw design can more effectively handle filled plastics and main mixing materials, ensuring product consistency and high quality.


  6. Hydraulic Pressure Screen Changer: Equipped with a hydraulic pressure screen changer, the screen can be quickly replaced, reducing downtime and improving production efficiency. This design allows the machine to be more flexible in responding to different materials and color changes during the production process.


  7. Energy Saving and Environmental Protection: Plastic Extrusion Machine is usually equipped with energy-saving motors and inverters to achieve efficient use of energy. The machine is also equipped with an advanced exhaust system that can effectively remove moisture and volatile impurities, ensuring that the produced pellets are pollution-free and meet environmental protection requirements.


  8. Durability and maintainability: The machine uses high-quality alloy steel screws and barrels, designed for heavy-duty operation, ensuring durability and reliability. The user-friendly control panel simplifies operation and maintenance and optimizes space utilization.


Plastic Extrusion Machine Production line Configure:

ProductModelPower (KW)Details
Single Screw ExtruderHQ-150185Electric cabinet

Screw/Barrel materials: SACM-1

Temperature Control: 9-dot control
Screw Diameter: Φ150*P150/150;L/D:3
Gear oil cooling and filtration system: 1 group
Barrel cooling system: Fan-cooled
Motor: 185KW; Speed control: Inverter (V&T)
Auto Feeder: 2.2 KW;  Screw 40/1  ( Inverter control )
Die head ( screen changer): Manual Rotary/Hydraulic pressure/Dual Bolts Continuous

Hydraulic pressure: 5.5KW; Screen mesh: Φ330MM

Water Cooling Tank with Suction motorHQ-400T3.82.5mm thick 304# stainless steel cooling water tank with, size 6000×500×400mm, with 3.8KW water suction motor
Pellets Cutting MachineHQ-20HP15SKD-11/tungsten steel rotary blade, 32 blades, inverter control
Vibrating Machine with HopperHQ-20005.5Screen Material: Stainless steel 304#, 3 layer
Screen Size: Up: Ø6mm, Down: Ø1.5mm
Vibration motor: 0.15KW*2PCS


Applications of Plastic Extrusion Machine

1. Plastic Processing Industry

  • Plastic Products Manufacturing: Produces plastic pellets for injection molding, blow molding, and extrusion processes, enabling the production of household goods, stationery, and furniture components.

  • Transparent Plastic Applications: Ideal for producing high-transparency plastic pellets (e.g., PC, PMMA, PETG) used in electronic product casings, optical lenses, and premium packaging materials.


2. Automotive Industry

  • Automotive Components: Processes reinforced plastics and non-spray materials for vehicle interior and exterior parts, such as dashboards, bumpers, and headlights.

  • Functional Materials: Produces heat-resistant and impact-resistant modified plastics for engine covers and air ducts.


3. Electronics and Appliances Industry

  • Home Appliance Casings: Produces ABS and PC pellets for manufacturing TV casings, washing machines, refrigerators, and other household appliance housings.

  • Electronic Device Casings: Processes high-gloss, non-spray plastic materials for premium electronics, such as mice, keyboards, and phone cases.



4. Construction Materials Industry

  • Plastic Pipes: Manufacture PE and PP pellets for water, drainage, and gas pipes.

  • Decorative Materials: Processes high-performance plastics for plastic profiles, flooring, and wall panels.


5. Packaging Industry

  • Food Packaging: Produces eco-friendly, high-transparency plastic pellets for food packaging films and containers.

  • Industrial Packaging: Processes durable and strong plastic pellets for industrial plastic films and bags.


6. Medical Industry

  • Medical-Grade Plastics: Produces medical-grade plastic pellets (e.g., PC, ABS, PE) for syringes, medicine bottles, and medical equipment components.


7. Recycling Industry

  • Plastic Recycling: recycles waste plastics such as PC bottles, PET bottles, and plastic casings, converting them into high-quality recycled pellets for reuse.


8. Advanced Material Applications

  • Optical Materials: Produces optical-grade transparent plastic pellets for LED lamp covers, light guide panels, and lenses.

  • Specialty Materials: Processes high-temperature and chemical-resistant plastics (e.g., PPS, PEEK) for aerospace and electronic applications.


9. Research and Development

  • Material Innovation: Used in research institutions and material development companies to test and produce new plastic materials.

  • Prototyping: Ideal for small-scale production of sample products such as high-performance plastics, modified plastics, and color masterbatches.


Plastic Extrusion Machine Maintenance:

  • Daily cleaning: Clean the various parts of the machine regularly, especially the screw and barrel, to prevent the accumulation of plastic residues. Use appropriate tools and materials when cleaning to avoid damaging the surface of the machine.

  • Regular inspection: Check the key parts of the machine, such as the screw, barrel and mold regularly to ensure that they are not worn or damaged. Timely replacement of worn parts can avoid further damage and production interruptions.

  • Lubrication and anti-corrosion: Lubricate the moving parts of the machine regularly to reduce friction and wear. At the same time, take anti-corrosion measures to prevent machine parts from rusting. Using high-quality lubricants and anti-corrosion materials can extend the service life of the machine.

  • Parts replacement: Replace worn or damaged parts in time to ensure the normal operation of the machine. Regular inspection and replacement of key parts such as bearings and gears can keep the machine running efficiently.

  • Storage environment: Store the machine in a dry and clean environment to avoid moisture and dust. When the machine is not used for a long time, it should be properly protected and maintained, such as applying anti-rust oil and covering with a protective cover.


Why Choose a Plastic Extrusion Machine?

  • Efficiency and Consistency: The unique zoned design (melting, mixing, exhausting, and plasticizing) ensures uniform plasticizing and consistent material quality, enhancing production efficiency.

  • Energy Efficiency: Low energy consumption design aligns with modern industrial energy-saving standards, reducing operational costs.

  • Wide Material Compatibility: Capable of processing a broad range of plastics, including transparent and engineering plastics, making it suitable for diverse industrial applications.

  • User-Friendly Operation: The machine is designed for easy operation, with intuitive controls that reduce the learning curve for operators.

  • Simple Maintenance: Routine maintenance is straightforward, minimizing downtime and ensuring reliable performance over time.

  • Cost-Effective: Affordable initial investment, combined with low operating and maintenance costs, makes it an economical choice for businesses of all sizes.

The single-screw plastic extrusion machine is a robust, reliable, and versatile solution for the plastic industry. It meets high-quality production demands while maintaining simplicity and cost efficiency.
