Single Screw Plastic Extruder
Single Screw Plastic Extruder
Single Screw Plastic Extruder

Single Screw Plastic Extruder

Single Screw Plastic Extruder has stability and reliability. It is relatively simple to operate and easy to use. Even users without much experience can quickly master the basic operations.
  • Product Information

Single Screw plastic Extruder is an industrial equipment used for plastic processing. It pushes the plastic raw material forward in a heated barrel through a rotating screw, while heating and mixing it, so that the plastic melts and finally extrude it through a mold. During the production process, the equipment can continuously and stably output plastic products, reduce the risk of production interruption, and improve production efficiency. In addition, due to its relatively simple structure, maintenance and maintenance are also relatively easy, which reduces the user's maintenance cost and time.

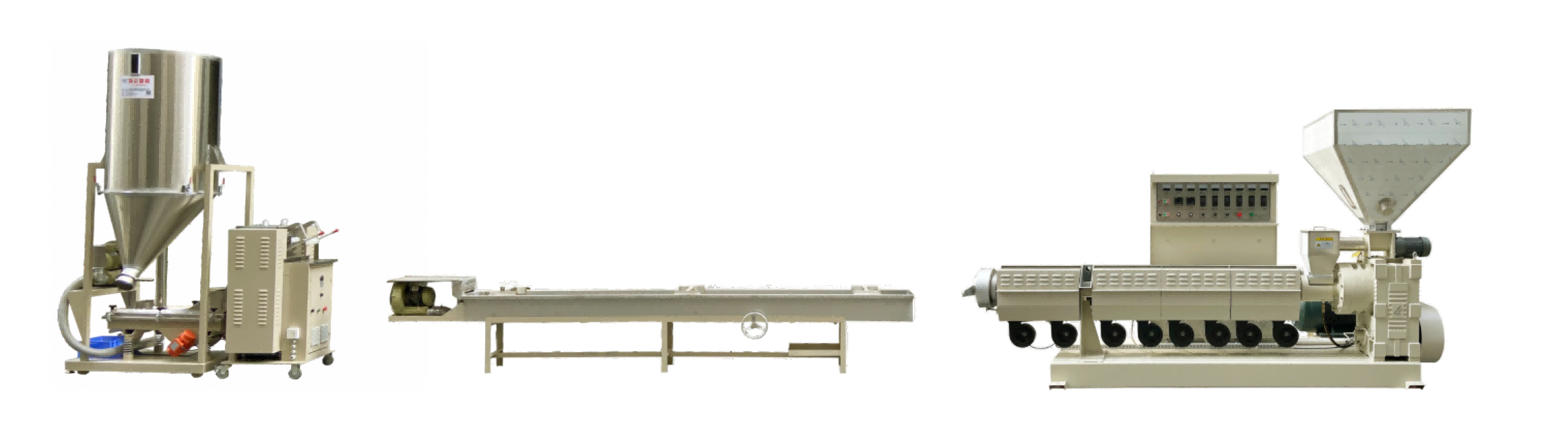

Single Screw Plastic Extruder

Single Screw Plastic Extruder Infomation:

Model:HQ-90
Warranty:1 Year
Port:Nansha, China
Screw:Single Screw
Terms of Payment:T/T
Average Lead Time:1-2 months
Screen Changer:Manual Rotary
International Commercial Terms(Incoterms):FOB, CFR, CIF, EXW


Single Screw Plastic Extruder Parameters: ( Manual Rotary Screen Changer )

Model

HQ-45

H-65

H-90

Capacity

25-50KG/HR

80-130KG/HR

200-300KG/HR

Motor

(Inverter Control)

11KW

22KW

55KW

Dimension



2600*1000*1800mm

2600*1000*1800mm

3850*1800*2100mm

Weight

1400KG

1800KG

2800KG

Screw

Material:SACM-1

Φ45*P45/40;L/D:33

Material:SACM-1

Φ65*P65/60

;L/D:35

Material:SACM-1

Φ90*P90/85

;L/D:33

Temp.

4 Section control

4 Section control

5 Section control

Gear oil cooling filter system

1 Group

1 Group

1 Group

Barrel cooling fan

180W*3PCS

180W*6PCS

180W*8PCS

Screen Changer

(Die head)

Manual Rotary

Manual Rotary

Motor: 2.8KW

Screen: Φ200mm

Manual Rotary

Motor: 4.3KW

Screen: Φ200mm

Auto Feeder

( Inverter Control )

Materials: Stainless steel,

Screw L/D: 60

Motor:200W

Materials: Stainless steel,

Screw L/D: 60

Motor:400W

Materials: Stainless steel,

Screw L/D: 60

Motor:750W


Single Screw Plastic Extruder Features:

  1. Simple structure: The structure of Single Screw Plastic Extruder is relatively simple, mainly composed of screw and barrel, which makes the manufacturing and maintenance costs of the equipment low.


  2. Cost-effective: Compared with twin-screw extruders, single-screw extruders are simpler to design and manufacture, so the cost is lower. At the same time, its operation and maintenance costs are relatively low, which helps to reduce the overall production cost.


  3. Wide range of applicable materials: It can handle a variety of common thermoplastics, such as polyethylene (PE), polypropylene (PP) and polystyrene (PS), etc., with high flexibility to meet the needs of different applications.


  4. Good product quality: Through the effective cooperation of screw and barrel, the uniform melting and mixing of plastics can be achieved, thereby improving the quality of the final product.


  5. High production efficiency: Single screw extruders can accurately shape thermoplastics, and their screw structure and geometry help to achieve the required product size and tolerance, and improve production efficiency.


  6. Adapt to different production scales: It can be adjusted according to different production needs and is suitable for various production scales from low to high output.


Where can us use the Single Screw Plastic Extruder:

  1. Pipe production: In the fields of construction, municipal engineering, etc., Single Screw Plastic Extruder is used to produce various plastic pipes, such as water pipes, drainage pipes, gas pipes, etc.


  2. Profile production: Single Screw Plastic Extruder can be used to produce plastic profiles with complex and irregular cross-sections, such as door and window frames, decorative strips, special-shaped sealing strips, etc.


  3. Film production: In the plastic packaging industry, Single Screw Plastic Extruder is used to produce plastic films of various thicknesses, including blown film and cast film, which are widely used in food packaging, shopping bags, agricultural films and other fields.

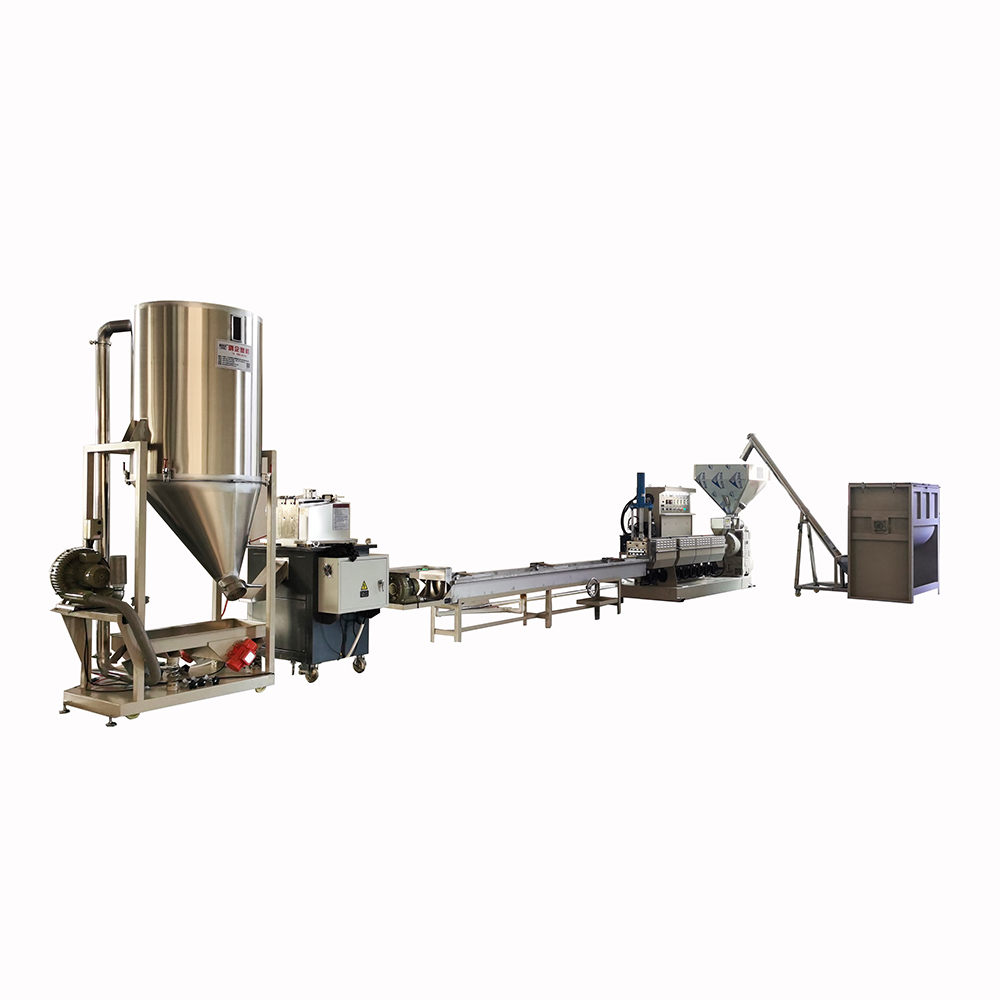

Single Screw Plastic Extruder

Single Screw Plastic Extruder Maintenance:

  • Regular cleaning: Clean the screw and barrel regularly to remove residual plastic materials and prevent scale from affecting equipment performance.

  • Lubrication and maintenance: Lubricate the bearings and other moving parts of the equipment regularly to reduce wear and extend the service life of the equipment.

  • Check wearing parts: Regularly check the wear of wearing parts such as screws and barrels, and replace damaged parts in time to ensure the normal operation of the equipment.

  • Temperature control: Ensure the normal operation of the heating system, regularly check and calibrate the temperature sensor, and ensure that the temperature in the barrel is uniform and stable.

  • Electrical system inspection: Regularly check the connection and insulation of the electrical system to prevent electrical failures from causing equipment damage or safety accidents.

  • No-load operation test: After the equipment has been out of service for a long time or after major repairs, perform a no-load operation test to check the operating status of the equipment and ensure that there are no abnormalities before putting it into production.


Single Screw Plastic Extruder FAQ:

How energy-efficient is a Single Screw Plastic Extruder?

Single Screw Plastic Extruders are generally energy-efficient, especially when processing clean, homogenous plastic waste. Advanced heating and control systems can further reduce energy consumption, making them cost-effective for large-scale recycling operations.


Can a Single Screw Plastic Extruder handle mixed plastic waste?
While it can process some mixed plastics, a Single Screw Plastic Extruder is best suited for clean or lightly contaminated waste. For more complex or heavily contaminated materials, twin screw granulators or additional filtering systems may be required.


What are the applications of granules produced by a Single Screw Plastic Extruder?
The recycled granules are used in manufacturing processes such as injection molding, blow molding, and extrusion. They are ideal for producing new plastic products, including packaging materials, automotive parts, consumer goods, and more.


How does a Single Screw Plastic Extruder contribute to plastic recycling?
The Single Screw Plastic Extruder  into reusable granules, reducing the need for virgin plastics. This process helps minimize plastic waste, reduces environmental impact, and supports a circular economy by recycling materials back into production.


Why Choose the SHQ Single Screw Plastic Extruder?

With over 20 years of industry experience, the SHQ Single Screw Plastic Extruder has received outstanding feedback from hundreds of customer cases. This extensive history enables us to understand precisely what customers need from their equipment.


We are committed to providing the best in both pre-sales and after-sales services, along with practical and efficient plastic processing solutions to support our customers at every stage.
