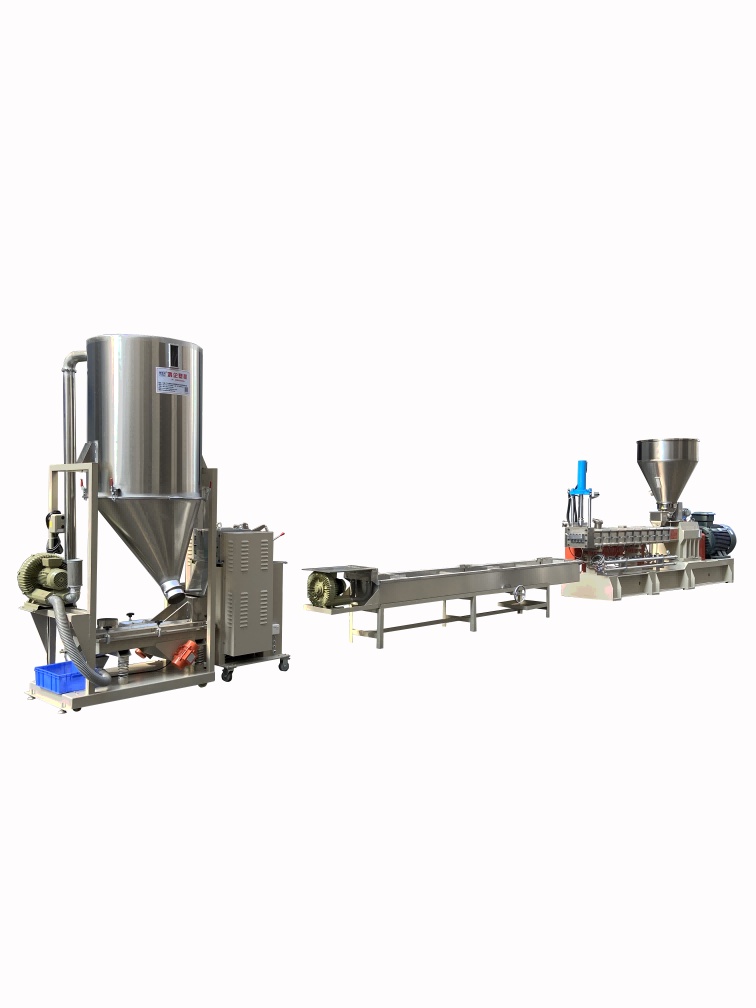

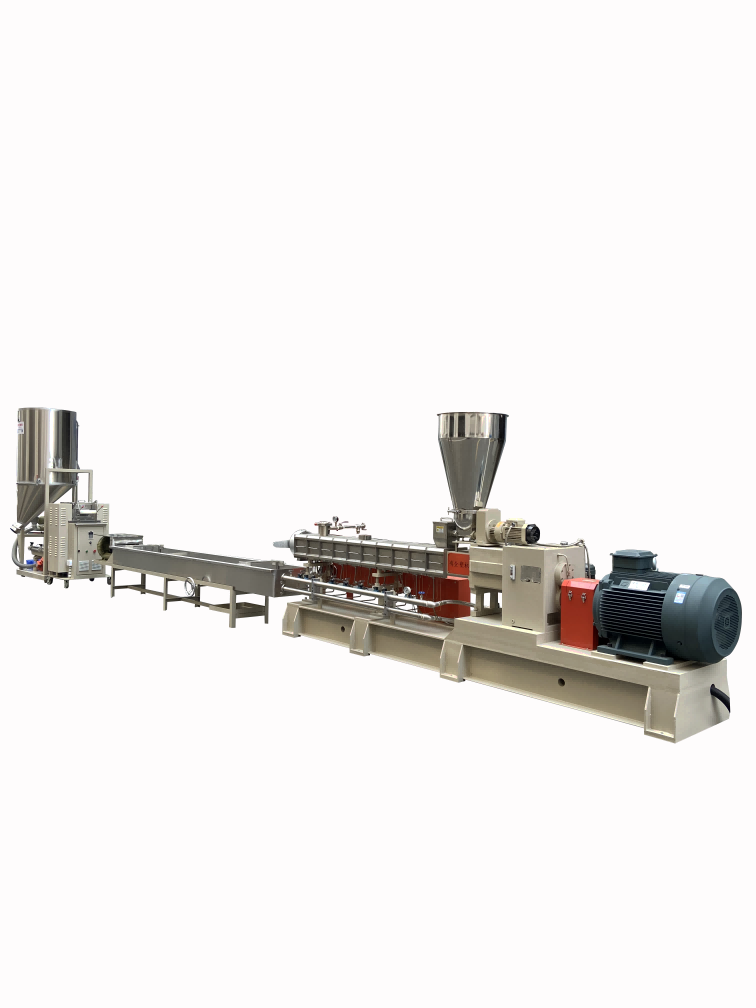

Equipped with advanced twin-screw design, this plastic recycling Extruder ensures thorough mixing and melting of plastics, providing good output quality. The Plastic recycling Extruder excels in processing a broad spectrum of materials, including engineering plastics, reinforced compounds, thermoplastic elastomers (TPE/TPU), and recycled plastics. With their precision, reliability and ability to process a wide range of materials, our Plastic Recycling Extruders deliver the performance you expect from modern plastic manufacturing needs.

Infomations:

Parameters:

Features:

Comprehensive Plastic Compounding:

This Plastic Recycling Extruder is engineered to handle complex plastic compounding processes, enabling the seamless integration of additives, fillers, and reinforcements into base polymers. It is ideal for creating custom polymer blends tailored to specific industrial needs.

Advanced Twin Screw Configuration:

Featuring a twin screw design with a Ø71mm diameter and a 40:1 length-to-diameter (L/D) ratio, this Plastic Recycling Extruder offers superior mixing, homogenization, and processing capabilities. The screw configuration can be optimized for different materials, ensuring efficient compounding and consistent product quality.

High Production Output:

With a capacity of 450-700 KG/HR, this Plastic Recycling Extruder is designed to meet the demands of large-scale industrial production, ensuring high efficiency and reliability.

Precision Temperature Control:

Equipped with a 10-zone temperature control system using Omron controllers, the Plastic Recycling Extruder allows precise management of the extrusion process, minimizing material degradation and ensuring consistent quality.

Robust Construction:

Built with high-grade 6542 steel screws and a fully alloy-coated barrel, this Plastic Recycling Extruder is designed for durability and reduced maintenance, ensuring long-term, reliable performance.

Energy Efficiency:

Powered by a 160KW motor with variable frequency control, this Plastic Recycling Extruder is engineered to optimize energy consumption while maintaining top performance, making it both cost-effective and environmentally friendly.

Detailed Specifications:

• Screw Diameter: Ø71mm, L/D ratio: 40

• Temperature Control: 10-zone system with Omron controllers

• Main Motor Power: 160KW (Global brand)

• Vacuum System: 4KW vacuum unit for effective degassing

• Cutting System: Equipped with SKD-11/tungsten steel rotary blades, with 28 blades driven by a 7.5KW motor with variable frequency control

• Cooling System: 304# stainless steel cooling water tank with a 2.2KW suction motor; dimensions: 6000450295mm

Applications:

Plastic recycling and reuse:

Plastic recycling extruder plays a vital role in the field of plastic recycling and reuse. It can efficiently process various waste plastics, such as PET bottles, HDPE barrels, PP packaging bags, etc., into high-quality reusable particles through crushing, cleaning, melting and extrusion.

Engineering plastic modification:

In the field of engineering plastic modification, plastic recycling extruder plays an irreplaceable role. By adding various fillers, reinforcing fibers, flame retardants, plasticizers and other modifiers, plastic recycling extruders can change the original properties of engineering plastics, such as improving strength, hardness, wear resistance, impact resistance, etc., to meet the special needs of plastic products in different fields.

Masterbatch production:

Masterbatch is a concentrated pigment particle composed of pigment, carrier resin and additives, with excellent color brightness and dispersibility. In the production process of masterbatch, plastic recycling extruder plays a key role. It can fully mix the pigment and carrier resin, and evenly disperse the pigment in the carrier resin through high-temperature melting and extrusion process to form masterbatch.

Thermoplastic Elastomer (TPE/TPU) Processing:

Thermoplastic elastomer (TPE/TPU) is a new type of plastic material with rubber-like elasticity and plastic processing performance. In the field of TPE/TPU processing, plastic recycling extruders can produce soft and durable plastic products.

Mixing of highly filled materials:

When preparing highly filled materials, plastic recycling extruders can evenly disperse a high proportion of fillers (such as calcium carbonate, talcum powder, wollastonite, etc.) into plastics to ensure product stability and consistency. These fillers can not only improve the strength and hardness of plastic products, but also reduce production costs and density. At the same time, plastic recycling extruders can also achieve blending and modification of different types of fillers by adjusting process parameters and formula design, and develop new highly filled materials with special properties.

Plastic Recycling Extruder Types:

Co-Rotating Twin Screw Extruder:

Both screws rotate in the same direction, offering efficient mixing and homogenization. Ideal for compounding, masterbatch production, and processing thermoplastic elastomers.

Counter-Rotating Twin Screw Extruder:

Screws rotate in opposite directions, providing gentle mixing, suitable for processing materials like PVC.

Intermeshing Twin Screw Extruder:

Screws engage with each other, enhancing mixing and shearing, perfect for high-viscosity materials and complex formulations.

Non-Intermeshing Twin Screw Extruder:

Screws operate independently, providing lower shear, ideal for applications requiring minimal material stress.

FAQs:

What industries use Plastic Recycling Extruders?

Industries such as plastics manufacturing, recycling, chemical processing, pharmaceuticals, and food production commonly use twin screw pelletizing machines. The Plastic Recycling Extruder’s flexibility allows it to be applied in various sectors requiring precise pelletization.

How to maintain a Plastic Recycling Extruder?

Regular maintenance includes inspecting the screws, die, and heating elements, as well as lubricating moving parts. Keeping the Plastic Recycling Extruder clean and ensuring proper alignment of the screws will extend its life and maintain efficiency.

What are the different types of Plastic Recycling Extruders?

There are various types, such as co-rotating and counter-rotating twin screw machines. Co-rotating models are better for high-shear mixing, while counter-rotating ones are suited for low-shear processes, allowing for tailored production based on material needs.

What is the capacity of a Plastic Recycling Extruder?

The capacity of a Plastic Recycling Extruder can vary widely depending on the model. It typically ranges from 50 kg/hour to over 1000 kg/hour, making it suitable for both small-scale operations and large industrial production lines.
